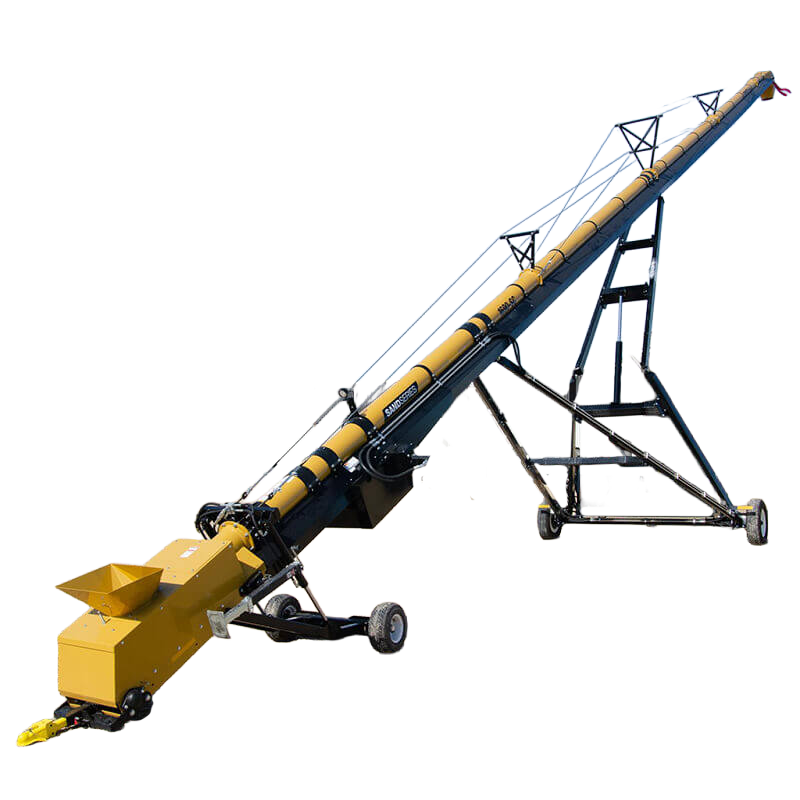

Meridian Manufacturing: Silo Fill Sand Conveyors

Convey-All® Silo-Fill Sand Conveyors are engineered for durability, efficiency, and reliability, ensuring seamless frac sand handling for energy industry operations.

Efficient and Reliable Frac Sand Conveyors

Our conveyors minimize spillage and maximize throughput, making them the ideal choice for silo filling. Designed with robust materials, they withstand harsh conditions while maintaining long-lasting performance.

Key Features

Optimized for Frac Sand: Engineered to handle abrasive materials with ease.
High-Capacity Performance: Transport large volumes of sand efficiently.
Customizable Options: Tailor systems to meet your operational needs.
Reduced Maintenance: Built for durability with minimal downtime.

Specifications

We offer multiple models to fit your capacity requirements. Contact us for detailed product information.

Model	Axle Width	Transport Height	Transport Length	Discharge Height (15 Degrees)	Length (15 Degrees)	Discharge Height (20 Degrees)	Length (20 Degrees)	Discharge Height (25 Degrees)	Length (25 Degrees)	Discharge Height (30 Degrees)	Length (30 Degrees)
1655	11′ 4″	9′ 9″	61′	13′ 5″	5′ 2″	18′ 4″	54′	23′ 2″	52′ 5″	27′ 9″	50′ 6″
1665	11′ 4″	10′ 8″	71′	16′ 2″	64′ 7″	22′	63′	27′ 4″	60′ 11″	32′ 8″	58′ 5″
1670	11′ 4″	11′ 10″	75′ 11″	17′ 4″	69′ 8″	23′ 6″	68′ 1″	29′ 6″	66′ 1″	35′ 3″	63′ 6″
1675	11′ 4″	12′ 5″	80′ 11″	18′ 9″	74′ 6″	25′ 3″	72′ 10″	31′ 7″	70′ 7″	37′ 8″	67′ 10″
1685	12′ 6″	11′ 7″	91′ 1″	21′ 5″	84′ 2″	28′ 9″	82′ 3″	35′ 11″	79′ 8″	42′ 9″	76′ 6″
1690	12′ 6″	12′ 2″	96′	22′ 7″	89′	30′ 4″	86′ 11″	37′ 11″	84′ 2″	45′ 3″	80′ 10″
16100	13′ 6″	14′ 7″	105′ 10″	25′ 3″	98′ 8″	33′ 10″	96′ 4″	42′ 2″	93′ 3″	50′ 2″	89′ 6″
2265	9′ 1″	11′ 5″	69′	15′ 1″	63′	20′ 7″	61′ 8″	25′ 10″	59′ 10″	30′ 11″	57′ 7″
2270	9′ 1″	11′ 7″	74′	16′ 10″	67′ 10″	22′ 9″	66′ 4″	28′ 6″	64′ 4″	34′ 1″	61′ 11″
2275	9′ 1″	11′ 2″	78′ 11″	17′ 8″	72′ 8″	24′	71′ 1″	30′ 1″	68′ 11″	35′ 11″	66′ 3″
2285	13′ 6″	12′ 4″	89′	20′ 9″	82′ 4″	27′ 10″	80′ 5″	34′ 8″	77′ 11″	41′ 3″	74′ 10″
2290	13′ 6″	13′ 1″	93′ 11″	22′ 1″	87′ 2″	29′ 7″	85′ 2″	36′ 10″	82′ 5″	43′ 9″	79′ 2″
22100	13′ 6″	14′	103′ 11″	24′ 8″	96′ 10″	33′ 0″	94′ 6″	41′ 0″	91′ 6″	48′ 9″	87′ 10″
22110	13′ 6″	14′ 6″	108′ 11″	27′ 3″	101′ 8″	36′ 5″	99′ 3″	45′ 3″	96′	53′ 9″	92′ 9″
